Mapping¶

Extract from the Field Notes of Ponder Stibbons

Passive reconnaissance revealed the conversations. Active reconnaissance confirmed the participants. Discovery mapped their internals. Now came the work of assembling these fragments into a comprehensive picture: the complete architecture of the UU P&L control infrastructure.

This was mapping, not of the physical turbine hall or cable trays, but of the logical architecture. The devices, their relationships, their dependencies, and the invisible structure that held it all together.

The asset inventory¶

Every reconnaissance begins with answering “what exists?” but mapping asks “how does it all fit together?” The first step was documenting the discovered assets in structured form.

From reconnaissance and discovery, the inventory emerged:

Control Layer Devices¶

Turbine PLC 1 (127.0.0.1:10502)

• Type: Modbus TCP PLC

• Function: Primary turbine speed and power control

• Memory Map: 2 holding registers (setpoints), 10 input registers (telemetry), 3 coils (control modes), 8 discrete inputs (alarms)

• Criticality: Critical - controls 33% of facility power generation

• Device Identity: Wonderware SCADA-2024 (simulator artefact)

Turbine PLC 2 (127.0.0.1:10503)

• Type: Modbus TCP PLC

• Function: Secondary turbine, identical configuration to PLC 1

• Memory Map: Identical to Turbine PLC 1

• Criticality: Critical

• Notes: Shares same device identity with all devices (pymodbus 3.11.4 limitation)

Turbine PLC 3 (127.0.0.1:10504)

• Type: Modbus TCP PLC

• Function: Tertiary turbine

• Criticality: Critical

• Notes: Third redundant turbine controller

Reactor PLC (127.0.0.1:10505)

• Type: Modbus TCP PLC

• Function: Reactor temperature and cooling control

• Memory Map: Similar structure, different sensor types (temperatures, pressures, cooling flow)

• Criticality: Critical - safety implications if cooling fails

Cooling System PLC (127.0.0.1:10506)

• Type: Modbus TCP PLC

• Function: Auxiliary cooling and environmental controls

• Criticality: High - supports reactor and turbine cooling

Supervisory Layer¶

SCADA Server (127.0.0.1:10520)

• Type: Modbus TCP Gateway/Aggregator

• Function: Centralized monitoring and control, polls all field devices

• Polling Interval: ~5 seconds per device (observed in passive capture)

• Criticality: High - loss of SCADA means loss of centralised visibility

• Notes: Accepts external connections (reconnaissance entry point)

Substation Controller (127.0.0.1:63342)

• Type: OPC UA Server

• Function: Electrical distribution monitoring and breaker control

• Exposed Objects: BreakerStatus, VoltageReadings, CurrentReadings, AlarmConditions

• Criticality: Critical - manages power distribution to city

• Protocol: OPC UA (modern hierarchical protocol vs. flat Modbus addressing)

Auxiliary Systems¶

Remote Terminal Unit (127.0.0.1:10510)

• Type: Unknown (minimal traffic, event-driven)

• Function: Unclear from reconnaissance (only 4 packets captured passively)

• Criticality: Unknown - requires further investigation

• Notes: Responds to connections but purpose not yet determined

This inventory represented not just “things on the network” but operational context. Each device had a purpose. Each had criticality. Each had dependencies.

The network architecture¶

The simulator’s network architecture was deliberately simple, all services on localhost, using port offsets to avoid conflicts. This was unrealistic compared to operational OT networks (which span multiple physical networks, VLANs, and security zones), but it faithfully represented the logical relationships:

┌─────────────────────────────────────────────────────────────┐
│                     Supervisory Layer                       │
│  ┌───────────────────┐           ┌───────────────────┐      │
│  │  SCADA Server     │           │ Substation Ctrl   │      │
│  │  (Port 10520)     │◄─────────►│  (Port 63342)     │      │
│  │  Modbus Gateway   │           │  OPC UA Server    │      │
│  └────────┬──────────┘           └───────────────────┘      │
│           │                                                 │
│           │ Polls every 5s                                  │
│           │                                                 │
└───────────┼─────────────────────────────────────────────────┘
            │
            ▼
┌─────────────────────────────────────────────────────────────┐
│                       Control Layer                         │
│  ┌──────────┐  ┌──────────┐  ┌──────────┐  ┌──────────┐     │
│  │ Turbine  │  │ Turbine  │  │ Turbine  │  │ Reactor  │     │
│  │  PLC 1   │  │  PLC 2   │  │  PLC 3   │  │   PLC    │     │
│  │  (10502) │  │  (10503) │  │  (10504) │  │  (10505) │     │
│  └──────────┘  └──────────┘  └──────────┘  └──────────┘     │
│       │             │             │             │           │
│       ▼             ▼             ▼             ▼           │
│  ┌──────────┐  ┌──────────┐  ┌──────────┐  ┌──────────┐     │
│  │ Physical │  │ Physical │  │ Physical │  │ Reactor  │     │
│  │ Turbine  │  │ Turbine  │  │ Turbine  │  │ Coolant  │     │
│  └──────────┘  └──────────┘  └──────────┘  └──────────┘     │
└─────────────────────────────────────────────────────────────┘

The SCADA server sat at the supervisory layer, polling field devices. The substation controller operated in parallel, monitoring electrical distribution while SCADA monitored generation. The control layer PLCs interfaced directly with physical processes through simulated physics models.

Configuration architecture¶

The simulator’s configuration files revealed the architectural decisions that shaped the environment. The configuration lives in config/:

devices.yml - Defined each device’s type, sensors, actuators, and initial state:

turbine_plc_1:
  type: turbine_plc
  sensors:
    - speed
    - power_output
    - bearing_temperature
    - oil_pressure
    - vibration
    - generator_temperature
    - gearbox_temperature
    - ambient_temperature
  actuators:
    - speed_setpoint
    - power_setpoint

Each device’s configuration explicitly listed its I/O points. This was why discovery found exactly 8 active input registers, they were defined in configuration, not arbitrary memory ranges.

protocols.yml - Mapped devices to network services:

modbus_tcp:
  turbine_plc_1:
    host: "127.0.0.1"
    port: 10502
  turbine_plc_2:
    host: "127.0.0.1"
    port: 10503
  scada_server:
    host: "127.0.0.1"
    port: 10520

This explained the port assignments discovered during passive reconnaissance. The port numbers weren’t arbitrary, they were deliberately configured to avoid conflicts with standard ICS ports (502, 102, etc.) while maintaining logical grouping (105xx for field devices, 635xx for supervisory systems).

device_identity.yml defined Modbus device identities for FC 43 responses:

device_identities:
  turbine_plc:
    vendor: "Allen-Bradley"
    product_code: "1756-L73"
    model: "ControlLogix 5570"
    revision: "20.011"

  scada_server:
    vendor: "Wonderware"
    product_code: "SCADA-2024"
    model: "System Platform"
    revision: "1.0"

The configuration included realistic vendor identities for multiple device types. However, the pymodbus 3.11.4 bug caused all devices to report the same identity (the last one initialised). This was a simulator limitation, not an architectural choice, but it didn’t affect functionality, only fingerprinting accuracy.

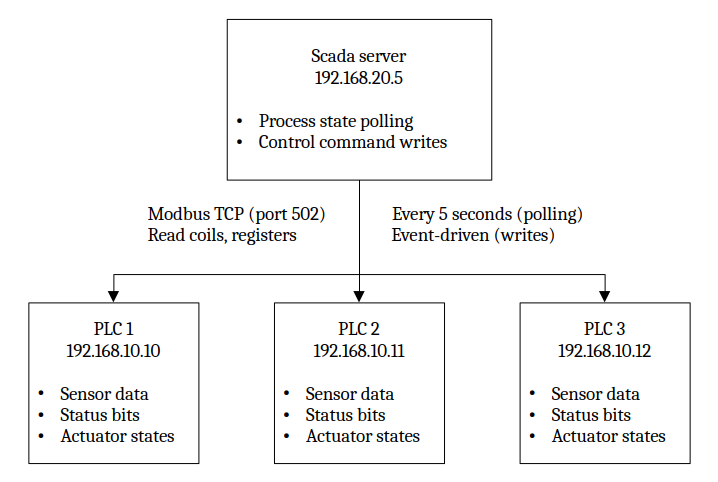

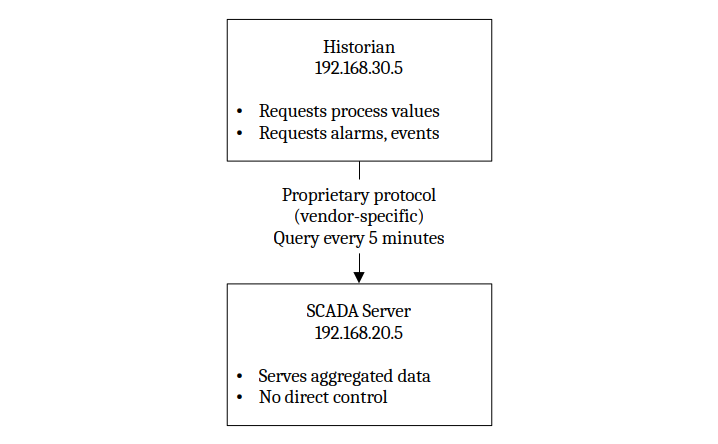

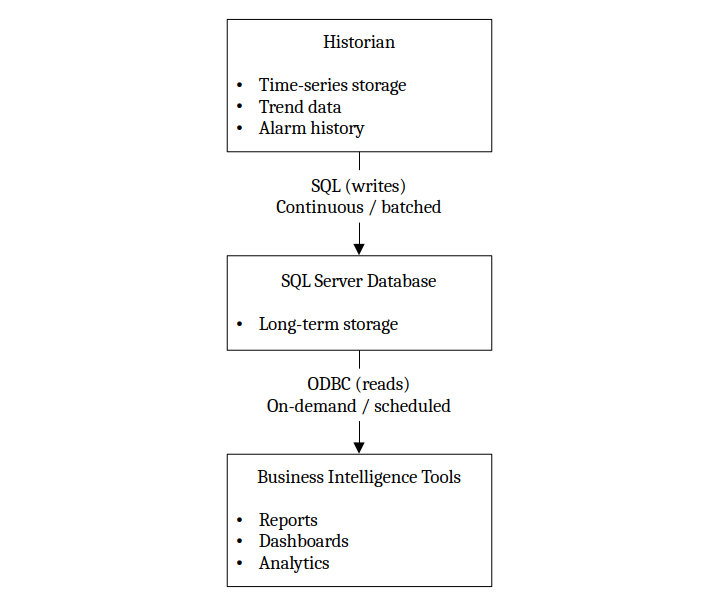

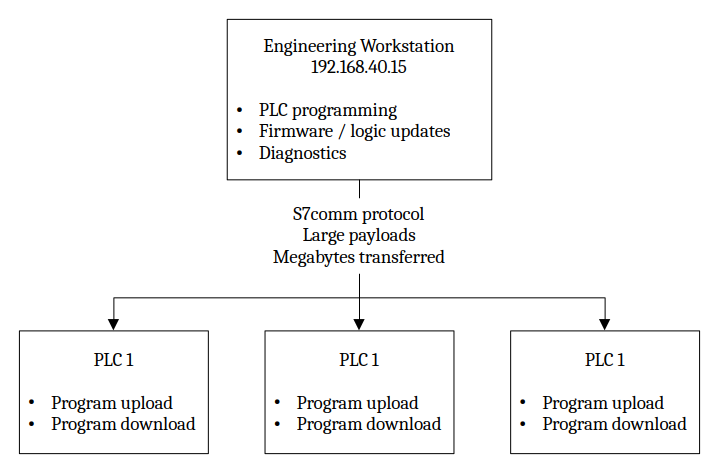

Data flow patterns¶

Mapping data flows revealed the system’s operational rhythm. From passive capture analysis and SCADA polling patterns:

Control Loop (Continuous, 5-second cycle):

SCADA (10520) → READ Input Registers → Turbine PLC (10502)
               ← Telemetry Data ←

Operator → WRITE Holding Register → SCADA (10520) → Turbine PLC (10502)
                                                   → Setpoint Updated

This was the fundamental control loop: SCADA polls, gets telemetry, displays to operator. Operator adjusts setpoint, SCADA writes to PLC, turbine responds. Continuous, predictable, observable in traffic captures.

Physics Simulation (Internal, ~100ms cycle):

PLC Holding Register (Setpoint)
    ↓
Control Algorithm (PID)
    ↓
Physical Model (turbine dynamics, thermal models, mechanical constraints)
    ↓
PLC Input Registers (Actual values)
    ↓
SCADA Telemetry

The physics simulation ran internally within each PLC model. The ±3 RPM oscillation observed during discovery came from this control loop, realistic PID behaviour hunting around the setpoint with real-world disturbances.

Alarm Propagation (Event-driven):

Physical Condition (e.g., speed > 1600 RPM)
    ↓
PLC Logic evaluates discrete inputs
    ↓
Discrete Input 0 (Overspeed Alarm) = TRUE
    ↓
SCADA polls discrete inputs
    ↓
Operator alarm display

Alarms flowed from physical conditions through PLC logic to SCADA display. The discrete inputs discovered during enumeration weren’t arbitrary, they represented the alarm infrastructure.

Critical dependencies¶

Mapping dependencies revealed what depended on what, the invisible threads that would cascade failures through the system:

Turbine Operation Dependencies:

• Turbine PLC must be powered and running

• Network connectivity between PLC and SCADA required for remote monitoring (but not for autonomous operation)

• SCADA server required for operator visibility and remote setpoint changes

• Physical model must execute correctly for realistic behaviour

SCADA Visibility Dependencies:

• Network connectivity to all field devices

• Modbus TCP service operational on each PLC

• Correct port configurations (10502-10506, 10520)

• No network segmentation blocking control traffic

Attack Surface Dependencies:

• No authentication on Modbus writes (discovered during test_write_permissions.py)

• Direct network access to PLCs (no firewall between SCADA and field devices)

• All unit IDs respond (no unit ID validation, discovered during scan_unit_ids.py)

The lack of authentication was architectural. Modbus TCP has no authentication mechanism. This wasn’t a configuration error, it was the protocol’s design. The simulator faithfully replicated this vulnerability.

Trust boundaries (or lack thereof)¶

In operational OT networks, trust boundaries separate control zones, safety systems from control systems, corporate networks from OT networks. The simulator’s architecture deliberately omitted these boundaries:

No Authentication Boundary:

• Any network client can connect to any Modbus port

• No credentials required for read or write operations

• No session management or access control

No Safety System Isolation:

• All PLCs on same logical network (same host, different ports)

• Safety-critical reactor PLC (10505) accessible via same methods as operational turbine PLCs

• No dedicated safety network or isolation

No Segmentation:

• All devices share localhost network space

• SCADA server has direct access to all field devices

• No VLANs, no firewalls, no network isolation

This flat architecture was realistic for the simulator’s purpose. Real OT networks often have similarly flat topologies, especially legacy installations or poorly secured facilities. The UU P&L simulator modelled a vulnerable but operational architecture.

The simulator’s honest architecture¶

Mapping revealed that the simulator made deliberate architectural choices:

• Simplicity over realism - Localhost deployment with port offsets rather than distributed network architecture. This enabled single-machine testing while preserving logical relationships.

• Transparency over security - No authentication, no access control, no segmentation. This enabled security research and attack demonstration without requiring exploit development for authentication bypass.

• Realistic protocols - Actual Modbus TCP, actual OPC UA, actual protocol behaviours. Not “toy” implementations but real industrial protocol stacks (pymodbus, asyncua).

• Physics simulation - Realistic control loop behaviour, thermal dynamics, mechanical constraints. Values weren’t random, they followed physical laws.

• Deliberate limitations - The pymodbus device identity bug, the unit ID validation issue, the compact memory maps. These were known limitations, documented in Simulator gaps.

The simulator’s architecture was honest. It didn’t hide its nature. It didn’t pretend to be production infrastructure. It provided a realistic test environment for security research, pentesting techniques, and attack demonstration.

The complete picture¶

After passive observation, active probing, systematic discovery, and architectural mapping, the complete picture emerged:

• 7 control devices across 3 turbines, 1 reactor, 1 cooling system, plus SCADA and substation controllers

• 2 protocols - Modbus TCP and OPC UA

• 23 I/O points per Modbus device (compact but complete)

• 5-second polling from SCADA to field devices

• No authentication on any service

• Realistic physics simulation running internally

• Documented limitations that don’t affect core functionality

This was the UU P&L Power & Light control infrastructure. Not as complex as actual city power systems, but faithful to their architecture. Vulnerable by design, transparent for research, and realistic enough for meaningful security testing.

The map was complete. The architecture was documented. The dependencies were known.

Now came the question: what happens when you modify a system this transparent? What attacks become possible with this complete map?

That’s where exploitation enters the story. The turbine overspeed attacks, the emergency stop demonstrations, the gradual manipulation that stays below alarm thresholds.

But those are not reconnaissance or mapping. Those are demonstrations of capability, showing what an adversary could accomplish with the knowledge we’ve gathered.

And that, as the Patrician would say, is why we map before we act. Knowledge before action. Understanding before intervention.

The reconnaissance was complete. The mapping was done. The simulator had revealed not just its components, but its structure, its rhythms, and its vulnerabilities.

From here, the work transitions from “what is it?” to “what can be done with it?” A different kind of work entirely. Still careful. Still documented. But no longer passive observation.

Active demonstration.

End of Field Notes: Reconnaissance and Mapping Phase Status: Complete Next Phase: Exploitation and Impact Analysis Authorisation: Required before proceeding
